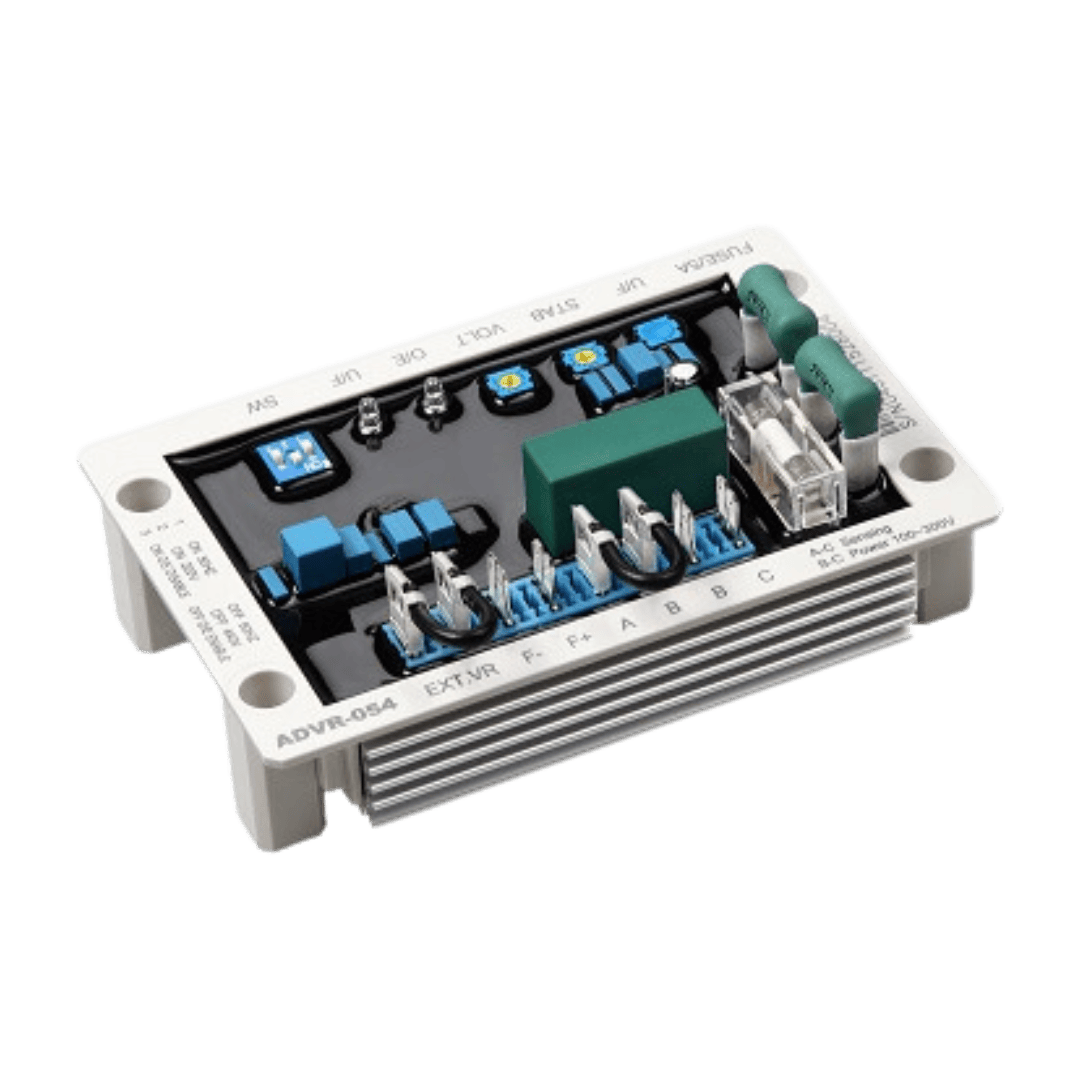

Description
SPECIFICATIONS
Engine Model: 5 AMP
Dimensions: 121x81x45mm
Current: 5
Resistance (ohms): 15
OTHER SPECIFICATIONS
Sensing input volts:
170 − 260 Vac @ 220 Vac, 1 phase 2 wires
340 − 520 Vac @ 440 Vac, 1 phase 2 wires
220/440 Vac, DIP switch setting
Sensing input frequency:
50/60 Hz, DIP switch setting
Voltage regulation:
Less than +/- 0.5% (with 4% engine governing)
Voltage build up:
5 Vac 25 Hz residual volts at power input terminal
Soft start ramp time:
3 secs. +/- 10%
NOTICE: High Voltage can be harmful/fatal! By purchasing this or any voltage regulator, you agree to be responsible for the installation and application. The voltage regulator should be installed by a qualified generator technician. Green Power South Pacific P/L will not be responsible for any incidental or consequential damages or personal injury. Our liability is limited to repair or replacement of the regulator if found defective.
FULL PRODUCT DETAILS IN PDF:
